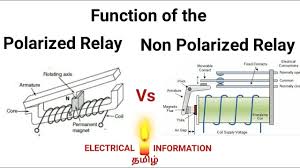

Permanent Magnet Relay / Types Of Electromagnetic Relay - Energise coil a to set the relay, energise coil b to reset tye relay.. Types of relay based on the polarity: Polarized relays use the magnetic flux of the permanent magnet in their electromagnetic sections. These are highly sensitive, yet very stable and robust. It is produced by sintering a mixture of other materials using iron oxide. Bouncing is pronounced, because resetting is carried out only by the power of the contact string.
A latching reed relay uses a form a switch magnetically biased by permanent magnet as well as latching and unlatching coils. In this relay, the magnetic coil freely rotates in the magnetic field of a permanent magnet. Relays are classified into the following types, depending on whether or not they have a permanent magnet. Permanent magnet relays are used in voltage independent rcds. The movable portion of a solenoid is called an armature.

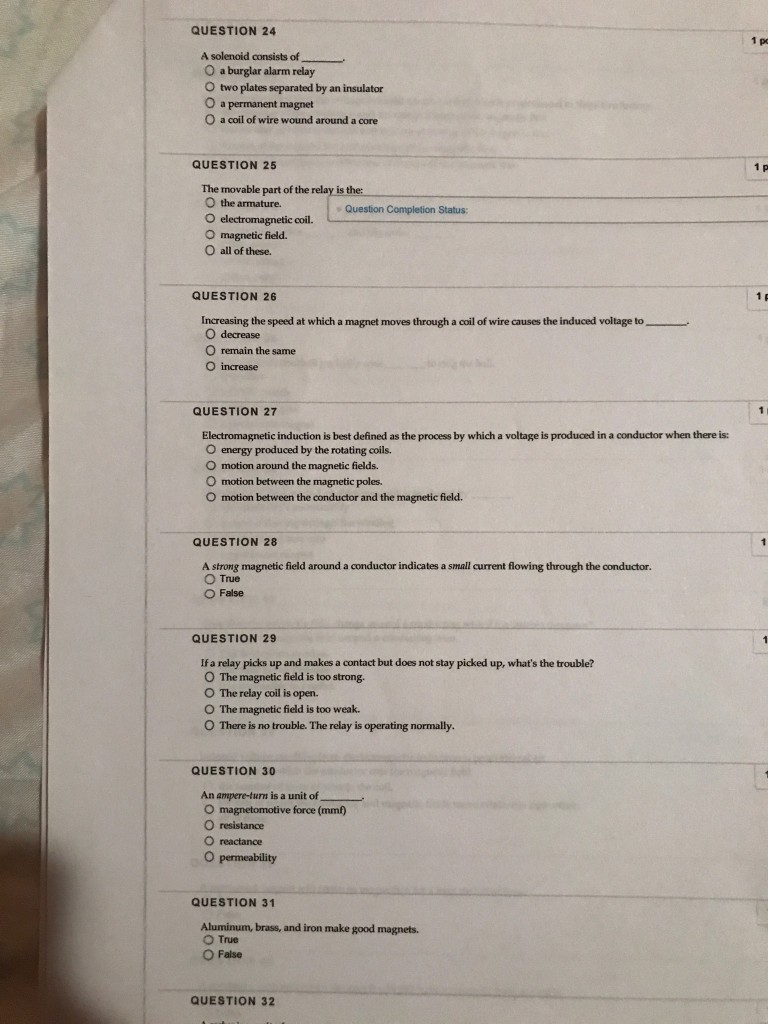

Solved Question 24 1 Po A Solenoid Consists Of O A Burgla Chegg Com from d2vlcm61l7u1fs.cloudfront.net These are similar to the electromechanical relays but there exists both permanent magnet and electromagnet in it, the movement of the armature depends on the polarity of the input signal applied to the coil. ⇒ much damage to the contact: Available in a wide range of impedance and trip power values to suit various rccb and rcbo designs famous and popular brands throughout the world. The torque is developed by the interaction between the field of the permanent magnet and the coil field developed due to the flow of actuating current into the coil. Permanent magnet relays are used in voltage independent rcds. The contacts are cantilevered from a pivoting support driven electromagnetically. Pml also provide lamination, flux concentrator. Unlike adjusting spring tension to manipulate relay sensitivity.
Permanent magnet moving coil relay :
Permanent magnetic field, this term must be familiar to those who do bidding/electric meters/electric meter accessories/machines and equipment etc. Magnetic field it has experienced last. Din rail and panel mount sockets are available for a wide range of mounting applications. This means that the operating coil has polarity. A permanent magnet is employed to produce eddy current braking to the disc. Rubber magnet is a kind of ferrite magnetic material series. It is produced by sintering a mixture of other materials using iron oxide. Polarized relays use the magnetic flux of the permanent magnet in their electromagnetic sections. ⇒ much damage to the contact: They are available in ac and dc coil voltages up to 10a. Bouncing is pronounced, because resetting is carried out only by the power of the contact string. The movable portion of a solenoid is called an armature. In this relay, the magnetic coil freely rotates in the magnetic field of a permanent magnet.

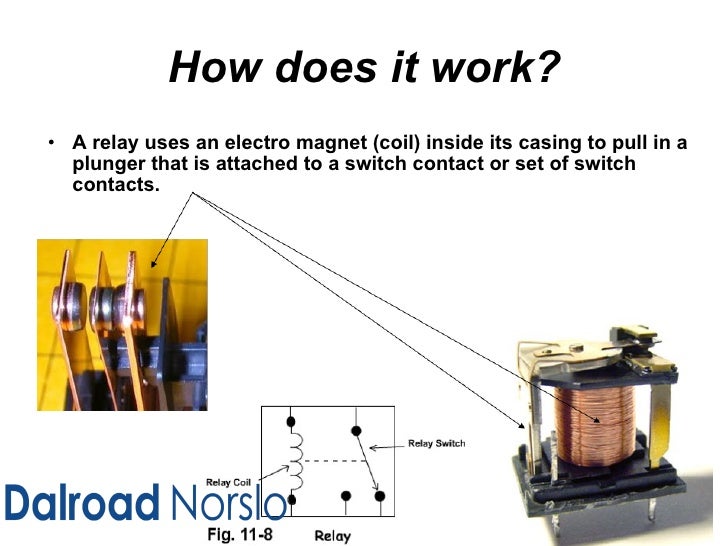

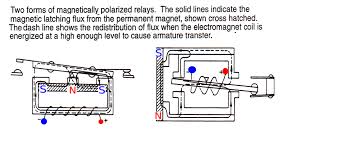

These are highly sensitive, yet very stable and robust. Latching relay with permanent magnet a latching relay, also called impulse, bistable, keep, or stay relay, or simply latch, maintains either contact position indefinitely without power applied to the coil. A relay is a solenoid set up to actuate switch contacts when its coil is energized. Permanent magnetic field, this term must be familiar to those who do bidding/electric meters/electric meter accessories/machines and equipment etc. Magnetically polarized relay polarized relay are made up of electromagnetic coil and a permanent magnet.
What Is A Magnetic Latching Relay Quisure from file.quisure.com Magnetically polarized relay polarized relay are made up of electromagnetic coil and a permanent magnet. This is used for dc only. Pml also provide lamination, flux concentrator. Available in a wide range of impedance and trip power values to suit various rccb and rcbo designs famous and popular brands throughout the world. Polarized relays use the magnetic flux of the permanent magnet in their electromagnetic sections. To transfer the armature and its associated contacts from one position to the other requires energizing current through the electromagnetic coil using the correct polarity. The contacts are cantilevered from a pivoting support driven electromagnetically. A permanent magnet is employed to produce eddy current braking to the disc.
There are mostly three positions in these relays.
Latching relay with permanent magnet a latching relay, also called impulse, bistable, keep, or stay relay, or simply latch, maintains either contact position indefinitely without power applied to the coil. These are similar to the electromechanical relays but there exists both permanent magnet and electromagnet in it, the movement of the armature depends on the polarity of the input signal applied to the coil. Less common are special relays called latching relays with two coils: Permanent magnet relays are used in voltage independent rcds. The power of the release spring will become stronger than the magnetic attraction, so the armature will release and the relay will be in a relaxed state. Contact bouncing when resetting is controlled thanks to power of permanent magnet. Permanent magnet moving coil relay : A solenoid is a device that produces mechanical motion from the energization of an electromagnet coil. The contactor includes a fixed contact and a movable contact. When the current that generates the magnetic field is permanent, the magnetic field it generates does not change with time. Reversing relay for permanent magnet dc motor. Bouncing is pronounced, because resetting is carried out only by the power of the contact string. The torque is developed by the interaction between the field of the permanent magnet and the coil field developed due to the flow of actuating current into the coil.
Less common are special relays called latching relays with two coils: These are similar to the electromechanical relays but there exists both permanent magnet and electromagnet in it, the movement of the armature depends on the polarity of the input signal applied to the coil. A permanent magnet is employed to produce eddy current braking to the disc. Ningbo relay magnetics co., ltd. An electromagnetic relay includes an electromagnet device, a contactor, and a trip device turning the contactor into an open state in which the contactor opens when an abnormal current flows.

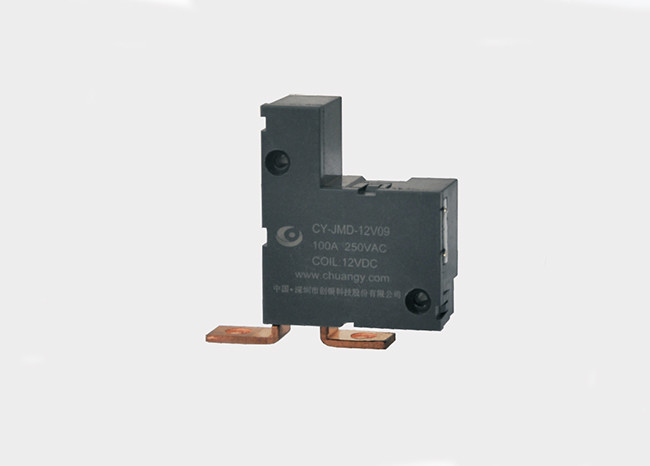

16 Amp Magnetic Latching Relay Switch A Permanent Magnet Maintains The Last Relay Switch Position Even With The Input Si Relay Electrical Supplies 10 Things from i.pinimg.com This means that the operating coil has polarity. The permanent magnet supplies flux to either of two permeable paths than can be completed by an armature. You must log in or register to reply here. Is a professional manufacturer of permanent magnet materials such as ndfeb and various magnetic application assembly. To transfer the armature and its associated contacts from one position to the other requires energizing current through the electromagnetic coil using the correct polarity. The braking torque is proportional to the speed of the disc. The movable portion of a solenoid is called an armature. Pulse input operation maintains conditions even during power failures.

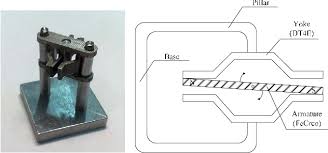

The electromagnet device includes a first excitation coil, a fixed element, first and second movable elements, and a permanent magnet.
These are highly sensitive, yet very stable and robust. There are mostly three positions in these relays. Permanent magnet relays are used in voltage independent rcds. The contactor includes a fixed contact and a movable contact. An electromagnetic relay includes an electromagnet device, a contactor, and a trip device turning the contactor into an open state in which the contactor opens when an abnormal current flows. The torque is developed by the interaction between the field of the permanent magnet and the coil field developed due to the flow of actuating current into the coil. Is a professional manufacturer of permanent magnet materials such as ndfeb and various magnetic application assembly. Polarized relays use the magnetic flux of the permanent magnet in their electromagnetic sections. Relays are classified into the following types, depending on whether or not they have a permanent magnet. A magnetic pulse generated by one or the other coil latches and unlatches the relay. In this relay, the magnetic coil freely rotates in the magnetic field of a permanent magnet. The contacts are cantilevered from a pivoting support driven electromagnetically. Manufacturers of magnetic separators, lifters, filters, sweepers, holding, retrieving, office, workshop, alnico magnet.
